Item Interaction Ecosystem (UE5 Plugin)

Universal, server-authoritative, data-driven framework for items, inventory, interaction, carrying, equipment, world-slot installation, placement and item features. Built for co-op horror / survival / extraction / puzzle projects. Tested compiling against Unreal Engine 5.7 (ue5.7 branch) and 5.8 (ue5.8 branch).

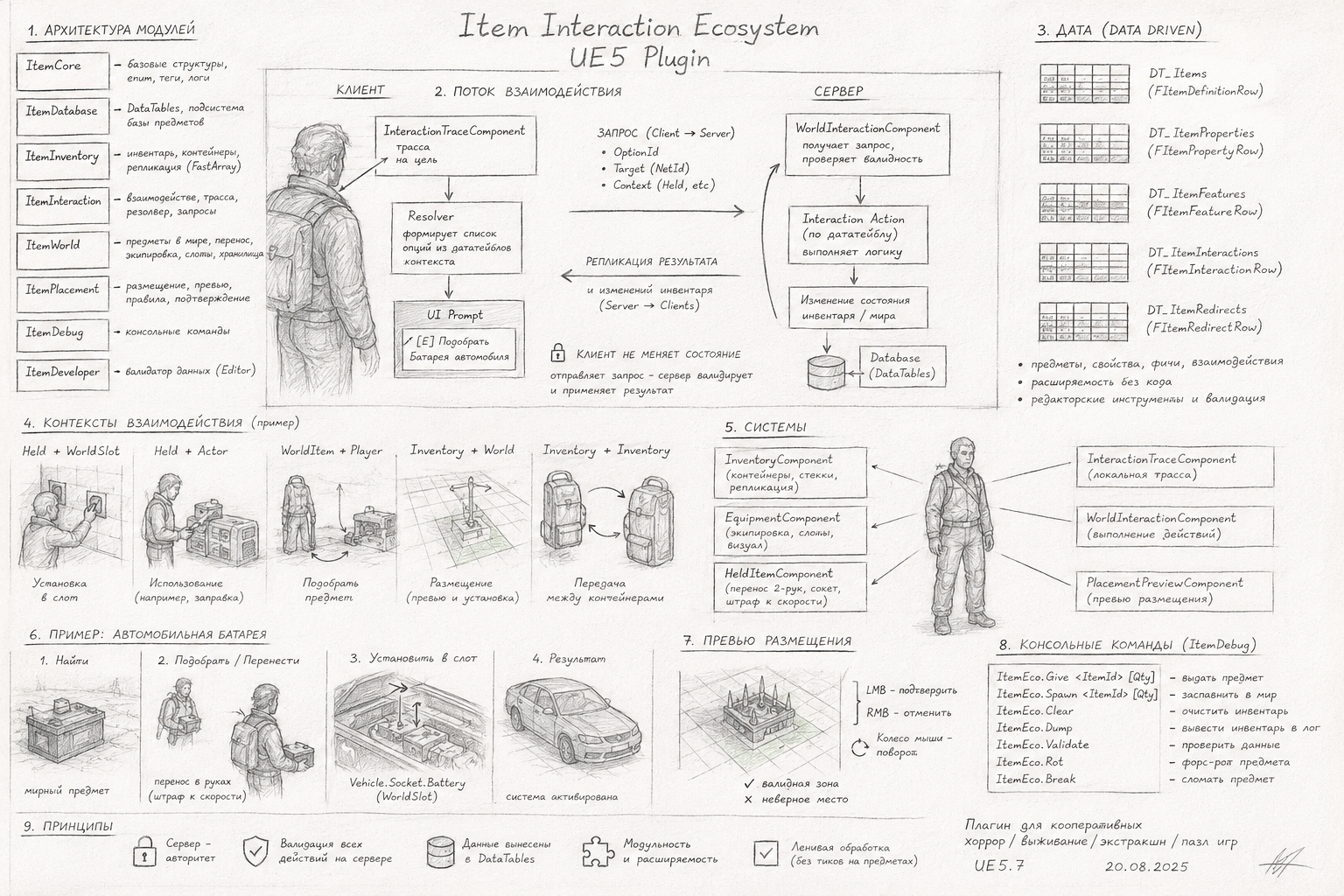

Architecture at a glance

More diagrams (interaction flow, inventory system)

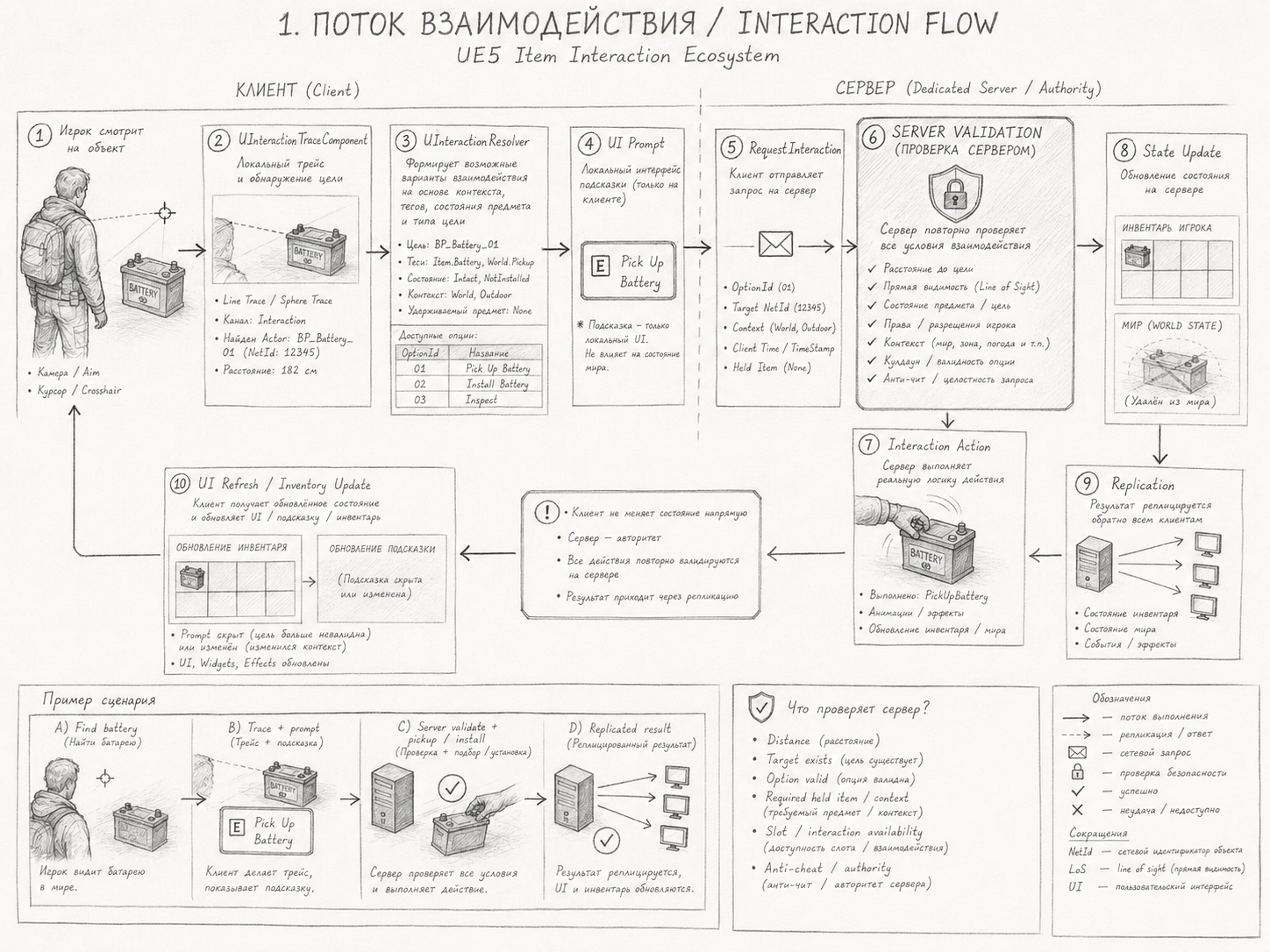

Interaction flow — client → server → replication

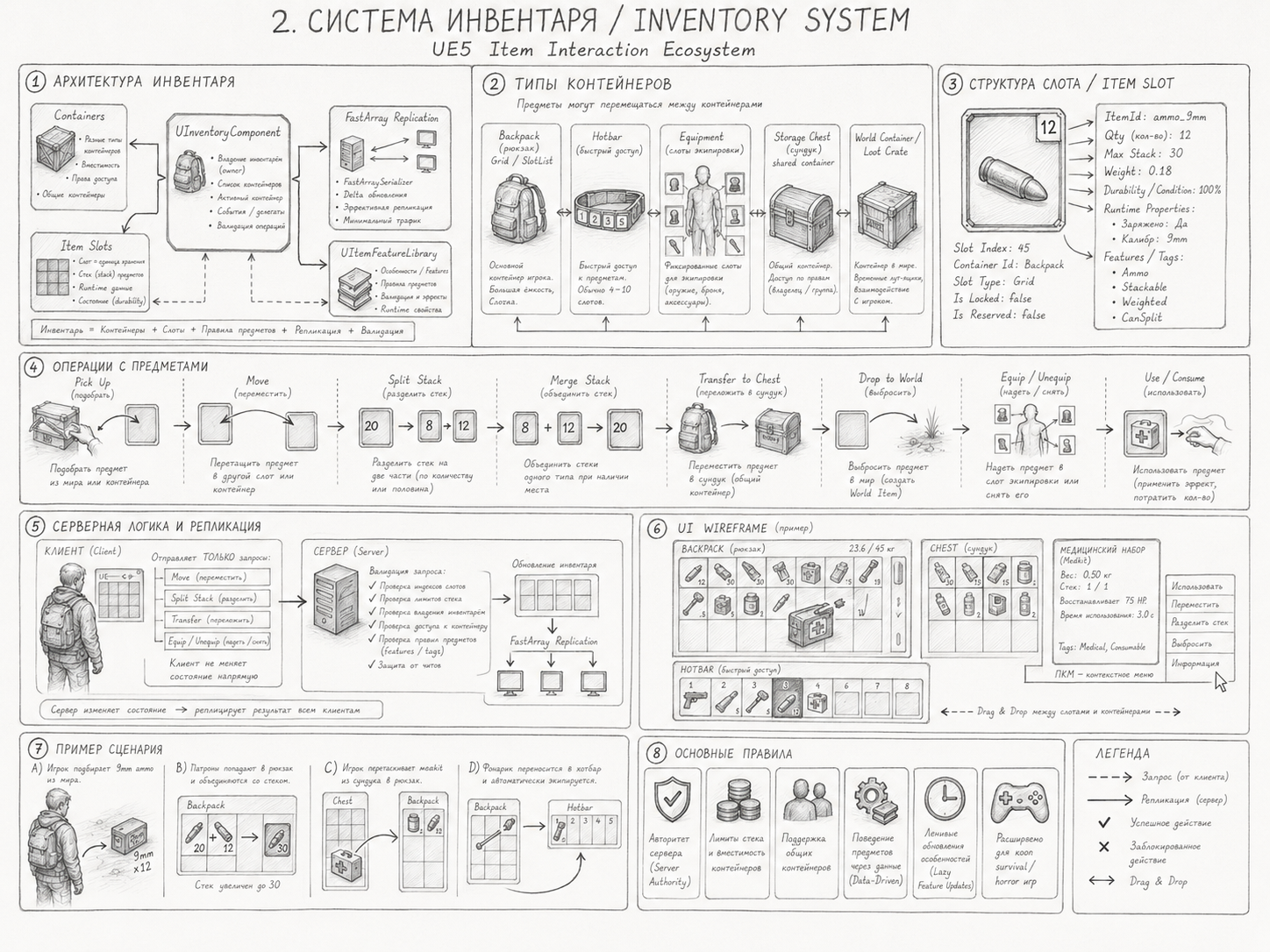

Inventory system — containers, slots, operations, replication

Status: all C++ runtime + editor modules implemented and compiling (spec stages 1–11). Binary content (UMG widgets, the test map, and the DataTable assets themselves) must be authored in-editor — see "Content to author" below. Example data is provided as importable CSV under Docs/ExampleData/.

---

Modules

Module	Type	Responsibility
ItemCore	Runtime	Base structs (FItemInstanceData, FItemRuntimeProperties, lock data), enums, native gameplay tags, logs
ItemDatabase	Runtime	FItemDefinitionRow + aux rows, UItemDatabaseSubsystem (loading, lookup, redirects, validation), Project Settings
ItemInventory	Runtime	UInventoryComponent (FastArray replication), containers, stacking, UItemFeatureLibrary
ItemInteraction	Runtime	Interactable/trace components, UInteractionResolver, UItemInteractionComponent (server requests + validation)
ItemWorld	Runtime	APickupItemActor, carry (UHeldItemComponent), equipment, world slots, UWorldInteractionComponent, storage actor
ItemPlacement	Runtime	UPlacementPreviewComponent (ghost preview, rules, server confirm)
ItemDebug	Runtime	ItemEco.* console commands
ItemDeveloper	Editor	Tools menu → Validate Item Data

Design principle (section 3): the client never mutates item state — it sends requests; the server re-validates and replicates results.

---

Setup

1. Enable the plugin (already referenced by InventorySystem.uproject). Build the InventorySystemEditor target.

2. Create the DataTables (Content Browser → Miscellaneous → Data Table):

   • DT_Items — row struct FItemDefinitionRow
   • DT_ItemProperties — FItemPropertyRow
   • DT_ItemFeatures — FItemFeatureRow
   • DT_ItemInteractions — FItemInteractionRow
   • DT_ItemRedirects — FItemRedirectRow

   Import the CSVs in Docs/ExampleData/ as a quick start (the flat tables import cleanly; in DT_Items the gameplay-tag container columns are easiest to finish in-editor).

3. Project Settings → Game → Item Ecosystem — assign the five tables.

4. Register the gameplay tags the data uses (Project Settings → GameplayTags), or rely on the native ones shipped in ItemNativeTags.h (Property., Feature., Action., Lock.). Item types / world sockets (e.g. Vehicle.Socket.Battery) are project tags you add.

Player pawn components

Add to your pawn:

• UInventoryComponent — set DefaultContainers (e.g. a Backpack SlotList + a Hotbar).
• UWorldInteractionComponent — the executor (use this, not the base, to get carry / drop / equip / install).
• UHeldItemComponent — for two-handed carry; set CarrySocket.
• UEquipmentComponent — for equip visuals; map SlotSockets.
• UInteractionTraceComponent — local aim trace (drives the prompt).
• UPlacementPreviewComponent — if you support placement.

Input (Enhanced Input, section 24)

Bind these to call into the components:

Key	Call
E	Resolver.GetPrimaryInteraction(pawn, trace.CurrentTarget) → WorldInteraction.RequestInteraction(option)
G	HeldItemComponent.RequestDrop()
LMB	PlacementPreview.ConfirmPlacement() (while placing)
RMB	PlacementPreview.CancelPlacement()
Wheel	PlacementPreview.RotatePreview(±10)
Tab	open inventory UI

---

Console commands (ItemDebug)

ItemEco.Give <ItemId> [Qty]    Give to the local player inventory
ItemEco.Spawn <ItemId> [Qty]   Spawn a world pickup in front of the player
ItemEco.Clear                  Clear the player inventory
ItemEco.Dump                   Log all inventory entries
ItemEco.Validate               Run database validation
ItemEco.Rot                    Force-rot the first inventory item
ItemEco.Break                  Break the first inventory item

---

Demo scenarios → code (section 31)

• Ammo pickup — look at ammo_9mm pickup → resolver builds [E] Pick up 9mm Ammo x12 (capability option) → WorldInteraction → ExecutePickup adds to inventory, destroys actor.
• Loot crate — AStorageContainerActor (shared inventory) → [E] Open (local UI event OnOpenContainer) → drag → RequestMoveItem(storage, …) → validated transfer.
• Car battery — carry from world (ServerHoldWorldItem, move-speed penalty) → look at vehicle with UWorldItemSlotComponent(Vehicle.Socket.Battery) → DT_ItemInteractions row Held+Vehicle → InstallIntoWorldSlot → ExecuteInstall hands the carried actor to the slot.
• Fuel + generator — Held+Generator → UseHeldOnTarget (hold E). Wire the transfer with UItemFeatureLibrary::TransferFuel in a custom UInteractionAction or extend WorldInteraction (UseHeldOnTarget currently routes to action classes).
• Flashlight — equip from inventory (UEquipmentComponent::ServerEquip), item stays in inventory, EquippedActorClass spawns; drain with UItemFeatureLibrary::DrainBattery.
• Placement trap — PlacementPreview.StartPlacement(id) → ghost + ValidatePlacement red/green → confirm → server re-validates → spawns placed actor, removes from inventory.
• Raw meat rotting — UItemFeatureLibrary::UpdateInventoryFeatures (call on container open / save load / world-time pulse). Lazy: nothing ticks per item. At freshness 0 it transforms raw_meat → rotten_meat.

---

Content to author in-editor (binary assets, not creatable from source)

• DataTable assets (import the CSVs above).
• UMG widgets (section 23): WBP_InventoryRoot, WBP_InteractionPrompt, WBP_LootWindow, WBP_ActionProgress, WBP_PlacementHint, etc. Bind them to the components' delegates (OnInventoryChanged, OnTargetChanged, OnOpenContainer, OnPlacementStateChanged) — UI only displays and sends requests (section 25).
• InventoryInteractionTestMap (section 30) with pickups, a vehicle (battery/fuel slots), a generator, a storage chest, a placeable trap surface.
• Skeletal-mesh sockets named to match CarrySocket / equipment SlotSockets / world-slot AttachSocketName.

---

Build / validate

"<UE>\Engine\Build\BatchFiles\Build.bat" InventorySystemEditor Win64 Development ^
  -Project="<path>\InventorySystem.uproject" -WaitMutex

Then in-editor: Tools → Item Ecosystem → Validate Item Data, or ItemEco.Validate in PIE.
